Why Fiberglass Boats Require Special Installation Care

You’ve got the new fish finder in hand, ready to mount it on your fiberglass boat. The old drill-and-screw approach that works on aluminum boats can turn into a nightmare here. Crack the gelcoat, and water seeps into the core. Within a season, you’re looking at soft spots, delamination, and thousands in repairs.

This guide walks through the entire installation step by step, from choosing the right spot to wiring the display. You’ll learn how to handle solid and cored hulls, mount the transducer without leaks, and avoid the common mistakes that send people to the repair shop. By the end, you’ll have a clean, reliable setup that doesn’t compromise your boat’s structure.

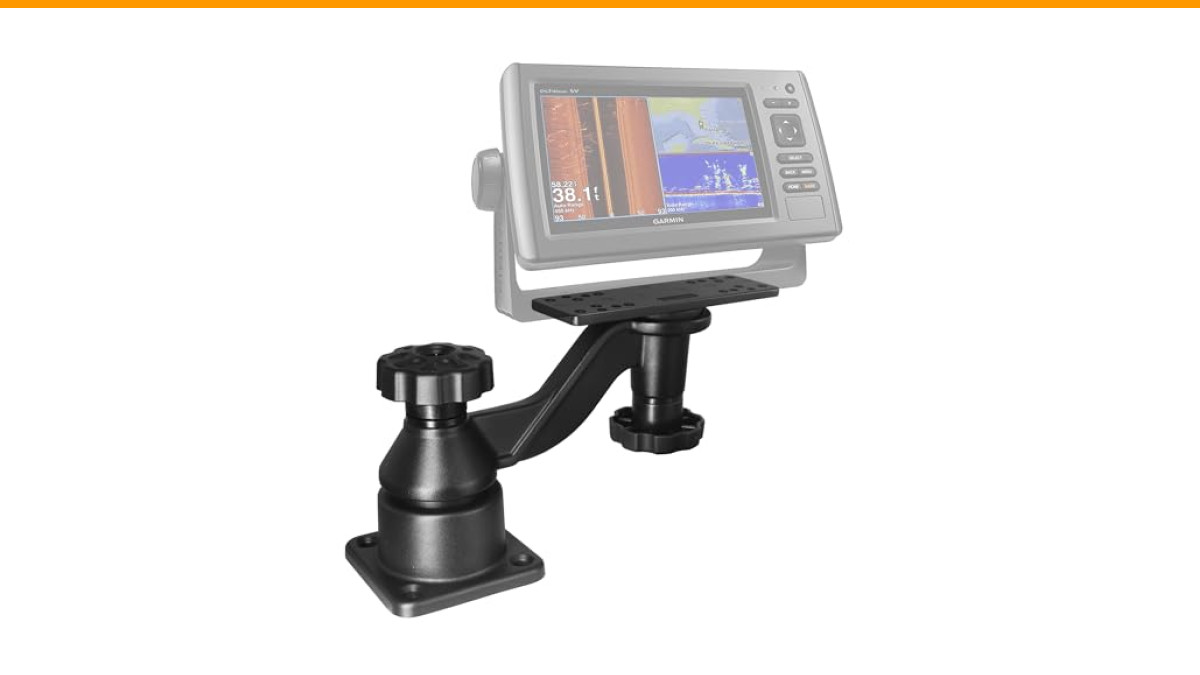

One thing to consider before you start: the display mount. A heavy-duty mount like the WINDFRD Aluminum Swing Arm Fish Finder Mount handles screens from 5 to 12 inches and rotates 360 degrees. It’s built with marine-grade aluminum and stainless steel hardware, so it won’t corrode in saltwater. That’s a solid choice if you want the display positioned for easy viewing without drilling extra holes in your dash.

Tools and Materials Checklist for a Fiberglass Installation

Before you touch the boat, gather everything. Running to the store mid-install is a pain, and using the wrong sealant is a disaster. Here’s what you need:

Marine-grade sealant (3M 5200 or 4200, or a polyurethane adhesive like SikaFlex 291)
Epoxy resin for shoot-thru mounting (two-part, slow-cure marine epoxy)
Drill with variable speed and a clutch
Hole saw or spade bit sized for the transducer cable and mounting screws
Masking tape, painter’s tape, and a pencil
Sandpaper (120 and 220 grit) and a sanding block
Isopropyl alcohol for cleaning
Wire strippers, crimpers, heat shrink tubing, and ring terminals
Inline fuse or circuit breaker (rated for your display’s current draw)
Zip ties and adhesive cable clamps
Multimeter for testing connections

Don’t skip the clutch on your drill. It prevents over-torquing, which is the main cause of gelcoat cracks. If your drill doesn’t have one, buy a cheap variable-speed model or use a hand drill for the pilot holes.

Step 1: Choosing the Optimal Mounting Location for the Display and Transducer

Where you put the display matters as much as the transducer. You need to see it while driving, but it shouldn’t block your view of the water. Most anglers mount the display on the dash or console, slightly off to the side. If you’re using a swing arm mount, you can adjust it for glare and visibility.

For the transducer, the location is critical. The transducer must stay in contact with clean, undisturbed water at speed. That means avoiding areas near strakes, rivets, or through-hull fittings that create turbulence. On a fiberglass boat, you also have to think about the hull’s core material.

Transom Mount vs. Shoot-Thru vs. Trolling Motor

Here’s a quick comparison of the three common mounting methods, specifically for fiberglass boats:

Method	Pros	Cons	Best For
Transom Mount	Easy access, strong signal, adjustable	Requires drilling, risk of gelcoat cracks, exposed to impact	Most boats, especially those without a trolling motor
Shoot-Thru (Inside Hull)	No drilling, no drag, no leak risk	Signal loss through fiberglass, limited to single frequency, must be in solid fiberglass	Solid fiberglass hulls, kayaks, and boats where you want zero holes
Trolling Motor Mount	No hull holes, portable, easy to remove	Signal drops when motor is stowed, cable management, limited to trolling speed	Bass boats and kayaks with bow-mount trolling motors

For most fiberglass boats, the transom mount is the standard choice. It gives the best signal at speed and is easier to adjust. The shoot-thru method is a great no-drill alternative, but only works if your hull is solid fiberglass below the waterline. We’ll cover both in detail.

Step 2: Drilling and Sealing Fiberglass Without Cracking the Gelcoat

Drilling into fiberglass is not like drilling into wood or aluminum. The gelcoat is a brittle outer layer. If you push too hard or use a dull bit, it will chip and crack. Here’s the technique that works:

Mark the spot. Use painter’s tape to cover the area. This prevents the drill bit from wandering and reduces gelcoat chipping.
Start with a pilot hole. Use a small bit (1/8 inch) first. Keep the drill perpendicular to the hull.
Graduate to the final size. Use a sharp bit or hole saw at low speed. Let the tool do the work. Don’t lean on it.
Clean the hole. Remove the tape and sand the edges lightly with 220 grit to smooth any burrs.
Seal the hole. Apply marine sealant to the inside of the hole and around the screw or bolt before inserting. This is non-negotiable.

Pro tip: Always drill from the outside in. That way, any gelcoat cracking happens on the outside where you can seal it, not on the inside where you can’t see it.

Handling Cored vs. Solid Fiberglass Hulls

Many modern fiberglass boats have a cored hull — a layer of balsa or foam sandwiched between fiberglass layers. This adds strength and insulation, but it’s a water trap. If you drill through the core without sealing it properly, water wicks into the core and rots it. You won’t see the damage until it’s severe.

For a cored hull, you need a different approach. After drilling the pilot hole, overbore it slightly (about 1/4 inch larger than the screw). Fill the void with epoxy resin mixed with a thickener, like colloidal silica. Let it cure. Then drill the final hole through the epoxy. This creates a waterproof plug around the screw. For the transducer mount, you’ll also want to bed the bracket with a generous amount of marine sealant.

If you’re not sure whether your hull is cored, check the owner’s manual or ask the manufacturer. Drilling into a cored hull without proper sealing is the number one cause of structural damage on boats like these.

Step 3: Mounting the Transducer (Transom and Shoot-Thru Methods)

Now let’s get into the actual mounting. I’ll walk through both the transom and shoot-thru methods.

Transom Mount Installation

Position the bracket. Hold the transducer bracket against the transom. The transducer should sit just below the hull’s bottom edge, but not extend more than 1/4 inch below. Too low creates drag and can cause spray.
Mark the holes. Use a pencil to mark the screw holes. Make sure the bracket is level.
Drill pilot holes. Follow the drilling steps above. Use a 1/8-inch bit first, then the final size.
Apply sealant. Coat the screws with marine sealant. Also apply a bead on the back of the bracket where it contacts the hull.
Attach the bracket. Screw it down snugly, but don’t overtighten. The sealant will squeeze out. Wipe it clean.
Mount the transducer. Slide the transducer into the bracket and adjust the angle. The transducer should be parallel to the waterline. Most brackets have a ratchet or screw for adjustment.

The angle is crucial. If it’s tilted up, you lose bottom signal at speed. Tilted down, you get spray and noise. Test it on the water and adjust in small increments.

Shoot-Thru (Inside Hull) Installation

This method avoids drilling entirely. The transducer sits inside the hull, and the sonar signal passes through the fiberglass. It works well on solid fiberglass hulls, but not on cored ones — the core blocks the signal.

Find the spot. Look for a flat, solid area on the inside of the hull, near the stern, below the waterline. No stringers, no core.
Clean the surface. Sand the area with 120 grit to rough it up. Wipe with isopropyl alcohol.
Mix the epoxy. Use a two-part marine epoxy. Fill the transducer’s mounting cup (if it has one) or the transducer’s face with epoxy.
Press the transducer into the epoxy. Push it down firmly to squeeze out air bubbles. You want a solid contact—no air gaps.
Let it cure. Follow the epoxy’s cure time. Usually 24 hours. Don’t move the boat during this time.

Pro tip: Mix a little extra epoxy and pour it over the transducer’s face after it’s set. This ensures a bubble-free bond. But don’t use epoxy that’s too thick; it can trap air. A slow-cure epoxy gives you more working time.

Step 4: Running and Securing the Transducer Cable

The transducer cable is the lifeline. A bad cable run causes interference and signal loss. Route it carefully, away from engine electronics and bilge pumps.

If your boat has a rigging tube or chase (a plastic conduit that runs from the transom to the console), use it. That’s the cleanest path. If not, run the cable along the inside of the hull, following existing wiring harnesses.

Feed the cable. Start at the transducer. Push it through the rigging tube. Use a fish tape or a wire coat hanger if it’s tight.
Secure the cable. Use zip ties or adhesive cable clamps every 12-18 inches. Don’t let it hang loose.
Avoid interference. Keep the cable at least 6 inches away from engine wiring, bilge pumps, and the trolling motor’s power leads. These can cause electrical noise that shows up as false readings on the display.
Coil the excess. Near the display, coil the extra cable and secure it with a zip tie. Don’t cut the cable—it’s not meant to be shortened.

If you have to drill a hole to pass the cable through the transom, seal it with a cable gland or a marine-grade sealant. Water loves to follow cables into the boat.

Step 5: Wiring the Display Unit to the Power Source

The display needs power. Most fish finders run on 12V DC. You’ll connect it to the battery or a fuse panel. Here’s what you need to know:

Use an inline fuse or circuit breaker. This protects the unit and your boat’s wiring. Check the display’s manual for the correct amp rating.
Connect to a dedicated circuit. If your boat has a fuse panel, use an empty slot. If not, connect directly to the battery with a fuse on the positive wire.
Use marine-grade wire. Tinned copper wire resists corrosion. Don’t use automotive wire.
Make solid connections. Crimp ring terminals onto the wires. Use heat shrink tubing over the connections.
Test with a multimeter. Before plugging in the display, check the voltage at the connection. It should read around 12.6V with the battery charged.

Pro tip: Connect the negative wire directly to the battery or a common ground bus. Don’t ground to the hull or the engine block. That can cause interference.

If you’re also installing a GPS antenna (some units have an external one), mount it with a clear view of the sky. Don’t place it under the console or near metal objects.

Step 6: Testing, Calibrating, and Troubleshooting Common Issues

You’ve got everything mounted and wired. Now it’s time to hit the water and test. But don’t just throw it in gear. Follow this sequence:

Turn on the display. It should power up and show the menu.
Check the transducer. At idle, you should see a bottom reading. If not, check the transducer cable connection and the transducer’s angle.
Run at speed. Accelerate slowly. Watch the display. If the bottom signal disappears at speed, your transducer is likely too high or angled wrong.
Look for interference. If you see random dots or lines on the screen, the cable may be too close to engine electronics. Re-route it.
Calibrate the depth. Most units auto-calibrate. If not, use the manual setting to match the actual water depth.

Here are the three most common post-install problems and how to fix them:

Ghost readings (random signals at speed): Often caused by the transducer picking up turbulence from a rivet or strake. Move the transducer to a cleaner spot or adjust the angle.
Loss of bottom signal at speed: The transducer is lifting off the water. Adjust it down slightly so it stays in contact.
GPS interference: If the GPS takes forever to lock or drops satellites, the antenna might be blocked. Move it to a higher location.

Frequently Asked Questions About Fiberglass Fish Finder Installations

Can I install a fish finder on a fiberglass boat without drilling?

Yes, you can use the shoot-thru method for the transducer, and a clamp-on mount for the display. The shoot-thru method requires a solid fiberglass hull. You mount the transducer inside the hull with epoxy, so no holes are needed. For the display, use a mount that clamps to the dash or a track system. It’s a clean solution if you want to avoid permanent modifications.

What sealant should I use for a transducer on fiberglass?

Use a marine-grade polyurethane sealant like 3M 5200 or 4200. 5200 is permanent and strong; 4200 is removable but still waterproof. For screws and brackets, either works. Avoid silicone-based sealants—they don’t hold up well in marine environments.

How do I know if my hull is cored?

Check the owner’s manual or contact the manufacturer. If you don’t have that, look at the inside of the hull. Cored hulls often have a visible seam or a slightly different texture where the core ends. You can also drill a tiny test hole in an inconspicuous spot—if you see balsa or foam, it’s cored. Seal the test hole immediately.

Can I mount the transducer on the trolling motor instead of the transom?

Yes, that’s a popular option for bow-mounted trolling motors. It keeps the transducer near the front of the boat, which is great for shallow water fishing. The downside is that you lose the signal when the motor is stowed. You’ll need a mounting bracket that fits your trolling motor’s shaft. Many fish finders have a trolling motor transducer option.

Why does my fish finder lose bottom reading at high speed?

This is almost always a transducer angle or placement issue. The transducer is lifting out of the water or reading turbulent water. Adjust the angle slightly downward, or move the transducer to a cleaner part of the transom. Sometimes it’s also a cable interference issue—check that the cable isn’t running near engine wiring.

Final Checklist Before You Hit the Water

You’ve done the work. Here’s what to double-check before you launch:

All screws and bolts are tight, but not over-torqued (gelcoat cracks).
Every hole is sealed with marine sealant, especially on cored hulls.
The transducer is parallel to the waterline and sits just below the hull.
The cable is routed away from engine electronics and secured every 12-18 inches.
The power connection has an inline fuse or circuit breaker.
All wire connections are crimped, heat-shrunk, and waterproof.
You’ve tested the unit at idle and at speed, and adjusted the transducer angle.

Take the time to do it right the first time. A rushed installation leads to leaks, interference, and frustration. But with the right tools and a careful hand, you’ll have a fish finder that works flawlessly for years.
