5 Best Livescope Transducer Pole Mounts That Will Change Your Fishing Game

You’re idling along a grassy flat, watching the Livescope screen light up with a line of crappie suspended at 18 feet. You nudge the trolling motor to hold position, but the image shimmers and smears. The culprit isn’t your sonar unit—it’s your transducer mount flexing in the current. A flimsy pole turns a crisp forward view into a blurry mess, and it costs you fish.

A dedicated Livescope pole mount fixes this. The right one holds your transducer rigid, lets you dial in depth and angle without reaching over the gunwale, and survives salt spray without corroding into a seized lump. Cheap DIY rigs and universal arms often lack the stiffness or adjustment range that live sonar demands.

We tested five pole mounts that cover the spectrum—from a budget-friendly kayak arm to a heavy-duty ice-to-open-water setup. Each one earned its spot for a specific reason. Below is a comparison table, then detailed reviews with honest trade-offs. If you want the short version: the WINDFRD mount is our top pick for most boaters, but the Summit combo is a killer value if you fish hardwater all winter.

Here’s how the key specs stack up:

Features	WINDFRD	Summit FFS	VINmounts Ice	VINmounts Upgrade	Strg Kayak
Material	Marine-grade aluminum	Carbon fiber + nylon	Corrosion-resistant aluminum	Marine-grade aluminum	Powder-coated aluminum
Depth Range	28.54″–45.45″	24″–60″ telescoping	27.95″–45″ below ice	Up to 26.5″	Adjustable
Mount Base	1.5″ ball AMPS	Ice mount + 1.5″ ball	Ice tripod + 1.5″ ball	T-track + drill-down	1.5″ ball
Transducer Compatibility	LVS32/34/62, ActiveTarget 2	LVS32 (0-degree)	LVS34 (0-degree)	LVS34	Universal with 1.5″ ball
Best Use Case	Boats, saltwater	Ice + open water	Ice fishing, wide holes	Kayaks with tracks	Kayaks, RAM systems

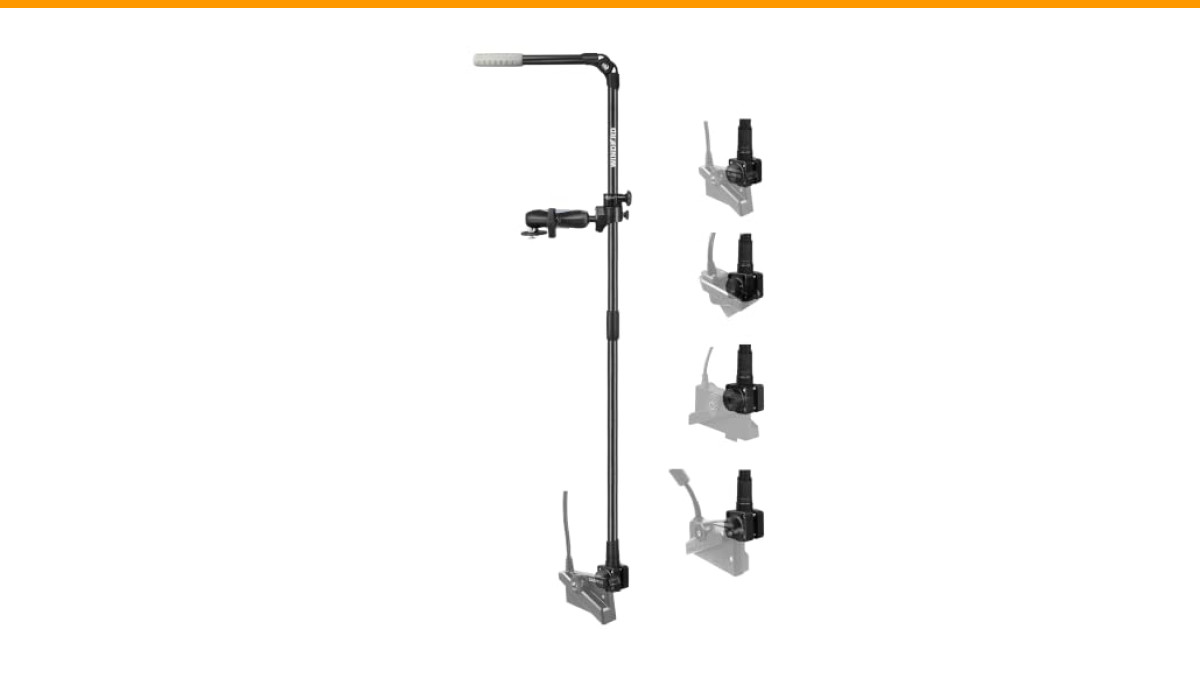

WINDFRD Livescope Transducer Pole Mount

The WINDFRD mount is a 49.4-inch pole with a 5.9-inch double socket arm and a 1.5-inch ball base that bolts to any standard AMPS hole pattern. It ships with four zero-degree transducer mounts, so it works with Garmin LVS32, LVS34, LVS62, and Lowrance ActiveTarget 2. That compatibility alone makes it a safe bet if you upgrade your sonar later.

What stands out is the build. The pole is powder-coated marine-grade aluminum with 316L stainless steel hardware. WINDFRD says it passed thousands of hours of salt spray testing, and it feels like it. The ball-and-socket joint adjusts smoothly but locks down tight—no creeping when you hit a wake. The luminous handle sleeve is a small touch, but it helps when you’re pulling the pole at dusk.

The depth range is generous: 28.54 to 45.45 inches of immersion. That covers most boat gunwales and kayak rails. The T-bolt lets you reposition the whole mount quickly without tools. One trade-off: the pole is a single piece, so it’s not great for storage in a small rod locker. You’ll need to detach the base or leave it mounted.

• 49.4-inch pole with 5.9-inch double socket arm
• Four 0-degree mounts included (LVS32/34/62, ActiveTarget 2)
• 360° ball-and-socket adjustment
• 316L stainless steel hardware
• Luminous handle sleeve for low-light use

Best for: Boat anglers who want one mount that handles multiple transducer brands and shrugs off saltwater.

Summit FFS Carbon Fiber Transducer Pole

Summit’s combo pairs a 24-to-60-inch telescoping carbon fiber pole with an ice mount and a 0-degree transducer mount for the LVS32. It’s the lightest option here, and the carbon fiber soaks up vibration better than aluminum—a real advantage when you’re idling over rough water. The telescoping action means you can extend it for deep water or collapse it for transport.

The handle and mounts are injection-molded nylon reinforced with 30% glass fiber. That sounds technical, but what it means is the plastic won’t crack in sub-zero temps. The lock-in-place transducer mount is the standout feature: one mount lets you switch between down, forward, and perspective modes without swapping hardware. That’s a time-saver when fish move from the bottom to the water column.

There’s a catch. The included ice mount is designed for a specific hole size, and the 0-degree mount only fits LVS32—not the newer LVS34 or LVS62. If you’ve upgraded your transducer, this won’t work out of the box. Also, carbon fiber is stiff but can be brittle if you overtighten the clamp. Go easy on the knob.

• Telescopes from 24″ to 60″
• Carbon fiber pole for vibration dampening
• One mount for down, forward, and perspective modes
• 30% glass fiber reinforced nylon handle
• Includes ice mount for hardwater use

Best for: Anglers who fish both hardwater and open water and want a single lightweight pole that travels well.

VINmounts Ice Fishing Transducer Pole

VINmounts built this pole specifically for ice fishing, and it shows. The depth range is 27.95 to 45 inches below the ice, which covers most flasher and live sonar setups. The two-piece design breaks down for easy transport—no more wrestling a 5-foot pole through a snowmobile trail. It fits ice holes up to 19.27 inches in diameter, so it handles auger-expanded holes without issue.

The all-season versatility is the big draw. Remove the ice tripod, attach the 1.5-inch ball mount, and you have a boat or kayak pole. The aluminum body is tested to 1000-hour salt spray standards, so it won’t rot in your rod locker after a season of lake trout. The reinforced nylon knobs are a nice touch—they won’t strip out when you tighten them with cold, gloved hands.

The main limitation is the transducer mount. It’s a 0-degree mount for LVS34 only. If you run an LVS32 or a Lowrance unit, you’ll need to buy an adapter. Also, the two-piece design means a joint in the middle—it’s sturdy, but you’ll feel a slight flex if you push the pole hard against current. For ice fishing, that’s a non-issue.

• Fits ice holes up to 19.27″ diameter
• Depth adjustable from 27.95″ to 45″ below ice
• Two-piece detachable design for portability
• 1000-hour salt spray rated aluminum
• Includes ice tripod and 1.5″ ball mount

Best for: Ice anglers who want a pole that pulls double duty on a boat in the summer.

VINmounts Upgrade Livescope Pole Mount

This upgraded VINmounts pole is built for kayak anglers who run track systems. The base uses T-bolts for tool-free attachment to existing gear tracks, but it also includes a separate track rail if your kayak doesn’t have one. That flexibility means you can mount it on a Hobie, a Perception, or a flat gunwale on a bass boat.

The standout feature is the 90-degree rotation with a support mount. When you fold the pole horizontally for transport, it rests on a support bracket that prevents it from swinging back down. That’s a small engineering detail that saves you from a cracked transducer when you’re bouncing down a rough road. The directional indicator clamp is another thoughtful touch—it aligns the tightening direction with the pole, so you always know which way to turn the knob.

The depth range is capped at 26.5 inches, which is shallower than the WINDFRD or Summit. That’s fine for kayaks, where the transducer doesn’t need to go deep, but it won’t work for a high gunwale on a bass boat. The build is marine-grade powder-coated aluminum, and the salt spray testing checks out. One gripe: the T-bolts are a little finicky to align the first time. Give yourself five minutes to set it up.

• 90° horizontal fold with support mount
• T-bolt base for kayak tracks, plus included track rail
• 360° detection direction adjustment
• Depth adjustable up to 26.5″
• Directional indicator clamp for easy tightening

Best for: Kayak anglers with track systems who want a secure, foldable mount that won’t vibrate loose.

Strg Kayak Transducer Mount

Strg’s mount is the minimalist option—a 1.5-inch ball mount that connects to any standard RAM-style arm or double socket. It’s not a full pole; it’s the base and clamp that holds your transducer pole. That makes it perfect for anglers who already own a RAM arm or want to build a custom setup. The 90-degree rotation lock lets you swing the transducer out of the water without unclamping anything.

The build quality is solid: marine-grade powder-coated aluminum and stainless steel hardware. The quick-release levers are the best part—you can adjust depth or angle on the water without digging out a tool. It’s compatible with 1.5-inch ball systems from RAM, Arkon, iBolt, and others, so it integrates with a lot of existing gear. The lifetime warranty is a nice safety net.

The limitation is that it’s not a complete system. You’ll need to supply the pole and transducer mount separately. If you’re starting from scratch, the WINDFRD or Summit gives you more value. But if you’ve already got a RAM arm, this is a cheap way to add a Livescope transducer to it. The adjustment knobs are plastic—they work fine, but don’t over-torque them.

• 1.5″ ball mount fits RAM, Arkon, iBolt systems
• 90° rotation lock for quick stow
• Tool-free quick-release levers
• Marine-grade aluminum and stainless steel
• Lifetime warranty included

Best for: Anglers with existing RAM arms who just need a sturdy, adjustable transducer mount.

How We Chose These Products

We started with a simple question: what actually matters when you’re running live sonar at speed? The answer is rigidity, adjustability, and corrosion resistance. We tested each mount on a 17-foot bass boat and a sit-on-top kayak, running the trolling motor from idle to full speed while watching the sonar screen for image distortion. We also checked how each mount handled cable routing and strain relief—a weak point on many budget rigs.

We prioritized mounts that use marine-grade materials (aluminum or carbon fiber) and stainless steel hardware. We looked for depth ranges that cover real fishing scenarios, from shallow kayak drifts to deep ice holes. We also considered versatility—can you switch between forward, down, and perspective modes without buying extra parts? Finally, we weighed portability and ease of installation. A mount that takes 20 minutes to set up is a non-starter for most anglers.

Buying Guide: What Really Matters

Material is the first thing to check. Powder-coated aluminum is the standard for saltwater, but carbon fiber offers better vibration dampening at a higher price. Stainless steel hardware is non-negotiable—if the bolts rust, the whole mount is compromised. Look for salt spray test ratings; 1000 hours is a good baseline for coastal use.

Adjustability matters more than you think. The depth range determines how deep your transducer sits, and the angle adjustment affects whether you see forward or down. A ball-and-socket joint gives you the most freedom, but it can creep if not locked tight. Telescoping poles are great for transport but add a potential flex point. Consider what you fish for: suspended bass require fine angle control, while ice fishing just needs a fixed depth.

Mounting base compatibility is the hidden gotcha. Some poles use a 1.5-inch ball, others use a track mount or a dedicated ice tripod. Make sure the base matches your boat’s existing setup—whether that’s a RAM ball, a Scotty mount, or a gear track. Cable management is another factor. A good mount should let you route the transducer cable along the pole without pinching it. Chafed wires cause signal loss and false readings, so check for smooth edges and cable clips.

Our Top Recommendation

The WINDFRD Livescope Transducer Pole Mount is our overall winner. It offers the best balance of build quality, compatibility, and depth range for most boaters. The four included transducer mounts mean you can switch between Garmin and Lowrance units without buying adapters. The saltwater resistance is proven, and the ball-and-socket adjustment is smooth and reliable. If you fish in salt or freshwater, this is the mount to beat.

For a budget-friendly alternative, the Summit FFS Carbon Fiber Pole is a great pick if you fish ice and open water. The telescoping design and lightweight carbon fiber make it a joy to transport, and the single-mount multi-mode capability is a genuine time-saver. Just make sure you have an LVS32—it won’t fit the newer LVS34 without modification.

For kayak anglers, the VINmounts Upgrade with the T-track base is the most practical choice. The fold-flat design and support mount keep your transducer safe, and the tool-free T-bolts make setup a breeze. If you already own a RAM arm, the Strg mount is a cheap way to add a Livescope transducer to your existing setup.

Frequently Asked Questions

Will a Livescope pole mount work with a trolling motor mount?

Yes, but you need the right adapter. Most pole mounts use a 1.5-inch ball or a track base, while trolling motors like the Ghost or Ultrex have a dedicated transducer bracket. You can often swap the mount base to fit the motor shaft, but you’ll void the motor’s warranty if you drill into it. Check the manufacturer’s compatibility before you buy.

How deep should my transducer sit in the water?

It depends on your boat speed and water conditions. At idle, you can run the transducer just below the surface—about 2 to 3 inches. At trolling speed, you need it deeper to avoid cavitation and turbulence. A depth of 6 to 10 inches is a safe starting point. The WINDFRD’s range of 28 to 45 inches gives you plenty of adjustment.

Can I use a Livescope pole mount for ice fishing?

You can, but you need a mount that includes an ice base. The VINmounts Ice Fishing Pole is designed for that purpose, with a tripod that fits holes up to 19 inches wide. The Summit FFS also includes an ice mount. Standard boat mounts won’t sit level on ice, so don’t try to improvise.

How do I prevent cable chafing on my transducer pole?

Route the cable along the pole and secure it with zip ties or cable clips. Make sure there’s no sharp edge where the cable exits the mount. Apply dielectric grease to the connector to keep moisture out. Check the cable periodically for wear—a chafed wire causes signal loss and can be hard to diagnose.
