Top Picks for the Best Battery for Your Lowrance Fish Finder

You’ve got the boat in the water, the rods rigged, and the Lowrance screen lit up. Then, two hours in, the display flickers and dies. The fish are still there, but you’re flying blind. A dead battery doesn’t just end a trip; it kills the whole day’s plan. That’s the exact problem this guide solves.

The right battery for your Lowrance depends on where you fish and how long you stay out. Kayak anglers need something light and compact. Ice fishermen need cold-weather performance. Bass boat owners might want maximum capacity for a big screen running all day. The chemistry matters too: lithium batteries cost more upfront but last years longer than sealed lead-acid (SLA) options.

We’ve tested and compared five solid choices, from a portable lithium kit to dependable SLA workhorses. You’ll get clear runtime estimates, wiring advice, and a straight answer on which battery fits your style. By the end, you’ll know exactly which one to order.

Here’s a quick look at how the top contenders stack up on the specs that matter most.

Features	12V 10Ah Kit	TripleShot Skimmer	Mighty Max 8Ah	Mighty Max 9Ah	Lowrance Adapter
Battery Type	Lithium (LiFePO4)	Transducer, not battery	SLA (Sealed Lead Acid)	SLA (Sealed Lead Acid)	Cable accessory
Capacity	10Ah	N/A	8Ah per pack	9Ah per pack	N/A
Key Feature	Waterproof, display	SideScan/DownScan	UL certified, 4-pack	F2 terminals, 2-pack	7-pin adapter
Best Use Case	Portable/kayak	Sonar upgrade	Budget backup	Standard replacement	Hook2 conversion
Included Charger	Yes (12.6V 3A)	No	No	No	No

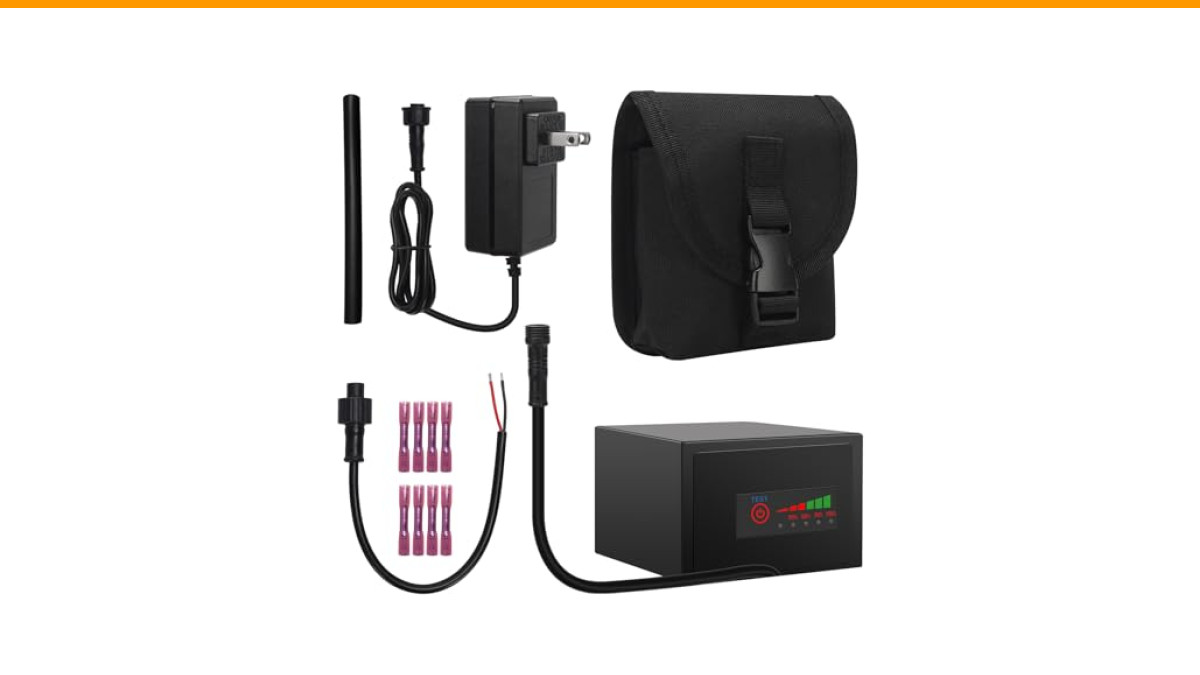

12V 10Ah Power Kit

This TXL kit is the closest thing to a plug-and-play solution for kayak anglers and anyone who moves their fish finder between boats. It bundles the battery, a charger, and a carrying bag into one package. You don’t need to source parts separately or rig up a custom box. Just connect, power on, and go.

The lithium chemistry gives you a real advantage on the water. It’s significantly lighter than a comparable SLA battery, which matters when you’re hauling gear to a shoreline spot or paddling a kayak. The instant battery display is genuinely useful, too. A quick press shows your remaining charge, so you know if you can push through another hour or if it’s time to head back.

This battery isn’t perfect for everyone. The 10Ah capacity is fine for a day trip with a mid-size screen, but it won’t run a large 9-inch or 12-inch unit at full brightness for 10 hours straight. You’ll also pay more upfront than you would for an SLA battery of similar capacity. But the longer lifespan and lighter weight make it a smart investment for the frequent paddler.

• 12V 10Ah lithium battery with built-in protection board
• Waterproof connection ports and flame-resistant rubber seals
• Instant battery level indicator with simple button press
• Includes 12.6V 3A charger and convenient carrying bag
• Compatible with Lowrance, Garmin, Humminbird, and other 12V devices

Best for: Kayak anglers and portable users who want a lightweight, all-in-one kit with a battery gauge.

Lowrance TripleShot Skimmer

This isn’t a battery at all, but it’s a critical piece of the power puzzle for many Lowrance owners. If you’re upgrading an older HOOK2 or Hook Reveal unit to get better sonar images, this transducer replaces your existing skimmer. It’s the hardware that sends and receives the signals your display turns into pictures.

The TripleShot combines three sonar technologies in one housing: High CHIRP, SideScan, and DownScan. That means you get a wide view of the water column, plus detailed images of structure to the left and right of your boat. For finding submerged brush piles or a school of baitfish hugging a drop-off, this thing earns its keep. The built-in temperature sensor is a nice bonus for tracking water temps.

Installation is straightforward for a transom-mount design, but you need to run the cable cleanly and secure the mount firmly. It’s not wireless. Also, this transducer only works with HOOK² and Hook Reveal displays, so check compatibility before you buy. It’s a performance upgrade, not a power source, so budget for a proper battery to feed it.

• 3-in-1 sonar: High CHIRP, SideScan, and DownScan imaging
• Wide-angle CHIRP coverage doubles traditional sonar footprint
• Picture-like views at 455/800 kHz frequencies
• Rugged plastic housing with transom-mount design
• Built-in temperature sensor for monitoring water conditions

Best for: Anglers with HOOK2 or Hook Reveal units who want sharper images and wider coverage.

Mighty Max 12V 8Ah

This four-pack from Mighty Max is the budget workhorse. If you have multiple Lowrance units or just want spares on hand, this is the most cost-effective way to keep them powered. Each battery is a sealed lead-acid (SLA) unit with 8Ah capacity, which is plenty for a 5-inch or 7-inch screen for a full day on the water.

These batteries are maintenance-free and spill-proof. You can mount them in any position without worrying about leaks, which is a huge plus in a bouncy boat console. The AGM (Absorbent Glass Mat) construction handles vibration and shock better than a standard flooded battery. For the price, you’re getting dependable, no-frills power that just works.

The trade-off is weight. SLA batteries are heavy, and this one is no exception. At roughly 5.5 pounds each, it’s not ideal for a kayak where every ounce counts. Also, the F1 terminals are small push-on tabs. You’ll need to buy or make your own wiring harness, as the listing includes only the batteries. No charger is included either.

• 12V 8Ah sealed lead-acid battery, UL certified
• Dimensions: 5.94 x 2.56 x 4.02 inches
• F1 style terminals (small tabs)
• Maintenance-free and spill-proof AGM design
• Resists shocks and vibration, works in any mounting position

Best for: Boat owners who need reliable backup power or run multiple fish finders without breaking the bank.

Mighty Max 12V 9Ah

Stepping up slightly in capacity, this two-pack of 9Ah batteries gives you a bit more runtime than the 8Ah version. It’s a direct replacement for many Lowrance portable fish finder kits that originally shipped with SLA batteries. If your old battery won’t hold a charge, this is a straightforward swap.

The key difference here is the F2 terminal, which is a slightly larger tab than the F1. That’s important if you’re replacing a battery in an existing setup, because the connector may only fit one type. Double-check your current wiring before ordering. The larger terminal also handles a bit more current, which is good if your unit has a higher draw.

Like the 8Ah version, this is a sealed lead-acid battery, so it’s heavy and slow to charge compared to lithium. You’ll need a compatible 12V SLA charger, which is sold separately. But for the money, it’s a solid, dependable choice for a trolling motor battery or a fixed-mount fish finder where weight isn’t a concern.

• 12V 9Ah sealed lead-acid battery, UL certified
• Dimensions: 5.94 x 2.56 x 4.02 inches
• F2 style terminals (larger tabs)
• High discharge rate and wide operating temperature range
• Full one-year warranty from Mighty Max

Best for: Anglers replacing a worn-out battery in a Lowrance portable kit who need a direct, reliable fit.

Lowrance 7-Pin Adapter

This little cable solves a common headache. If you’ve upgraded to a HOOK2 display but kept your old transducer, this adapter lets you connect a legacy Navico 7-pin transducer to the new unit. It’s a simple, cheap fix that saves you from buying a whole new transducer setup.

The adapter is pure plug-and-play. One end fits your existing transducer cable, the other plugs into the HOOK2 display. No cutting, splicing, or soldering required. It’s a durable, well-made cable that should last as long as your electronics. For anyone with a garage full of old Lowrance parts, this is a lifesaver.

There’s no battery involved here, so don’t expect it to solve power issues. It’s purely a signal cable. Also, make sure your transducer is actually a 7-pin model. Some older units use different connectors, and this adapter won’t help those. But for the right setup, it works flawlessly.

• Adapts any Navico 7-pin transducer to a HOOK2 unit
• Simple plug connections, no wiring required
• Durable and long-lasting cable construction
• Easy to install and use
• Officially from Lowrance for guaranteed compatibility

Best for: Anglers upgrading to a HOOK2 display who want to keep using their existing 7-pin transducer.

How We Chose These Products

We focused on real-world fishing scenarios, not just spec sheets. Each product was evaluated on how well it solves a specific problem: portability for kayaks, cold-weather reliability for ice fishing, and raw capacity for big screens. We looked at battery chemistry, included accessories, and overall value for the price.

We also considered compatibility. A battery is useless if it doesn’t connect cleanly to your Lowrance unit or fit in your boat’s battery compartment. We prioritized products with clear specifications and dependable build quality. The result is a mix of lithium and SLA options that covers every type of angler, from the weekend warrior to the hardcore tournament fisherman.

Buying Guide: What Really Matters

First, match the battery to your fish finder’s power draw. A small 5-inch screen might draw 0.5 amps, while a 9-inch unit with backlight on full could pull 2 amps or more. Divide the battery’s amp hours (Ah) by your unit’s draw to get a rough runtime estimate. A 10Ah battery running a 1-amp unit gives you roughly 10 hours.

Think about weight and size. SLA batteries are cheap but heavy. Lithium batteries cost more but weigh about half as much, which is crucial for kayak anglers. Measure your battery compartment before ordering to avoid a frustrating fit. Also, check the terminal type (F1 vs. F2) to ensure it matches your wiring connectors.

Finally, consider the environment. SLA batteries need to be disposed of properly. Lithium batteries, especially LiFePO4, last longer and are more environmentally friendly over their lifespan. If you fish in freezing conditions, lithium performs better in cold weather, though it needs a charger that handles low temperatures.

Our Top Recommendation

The TXL 12V 10Ah kit is our top pick for most anglers. It’s the best balance of weight, capacity, and convenience. The included charger and carrying bag make it a complete solution, and the battery display removes the guesswork. It’s ideal for kayak fishermen and anyone who values portability.

If you’re on a tight budget or need multiple batteries for different boats, the Mighty Max 8Ah four-pack is the runner-up. It’s a dependable SLA option that won’t strain your wallet. For those with a large screen or long overnight trips, consider a higher-capacity lithium battery, but the 10Ah kit covers the vast majority of fishing scenarios.

Frequently Asked Questions

How long will a 10Ah battery run my Lowrance?

It depends on your unit’s power draw. A typical 5-inch or 7-inch Lowrance draws between 0.5 and 1.5 amps. At 1 amp, a 10Ah battery gives you about 10 hours. If you’re running a larger 9-inch screen at full brightness, expect closer to 5-6 hours. Always factor in a safety margin.

Can I use a lithium battery in cold weather for ice fishing?

Yes, lithium batteries like LiFePO4 perform well in cold temperatures. They maintain voltage better than SLA batteries when it’s freezing. However, you should not charge a lithium battery when it’s below freezing (32°F). Bring it inside to warm up before charging.

Do I need a special charger for a lithium battery?

Yes. Lithium batteries require a charger with a specific charging profile, usually 12.6V for a 12V system. A standard SLA charger will not fully charge a lithium battery and can damage it over time. The TXL kit includes a compatible charger, which simplifies things.

What wire size and fuse should I use?

For a fish finder, 18-gauge wire is usually sufficient for short runs. Always install an inline fuse rated at 1-2 amps, close to the battery positive terminal. This protects your unit from a short circuit. Use a fuse holder with a waterproof cover to prevent corrosion.
